SPECIFICATIONS

Brand Name: NONE

Hign-concerned Chemical: none

Origin: Mainland China

Spoke Hole: Number of spoke

Air Wheel Conversion Kit,10 inch Wheel,24V/250W 36V/350W Electric Wheelbarrow Scooter Gear Hub Motor, load-bearing capacity 440.92lbs, for Bike Barrow Beach Trolley Cart Small go-karts Scooters

Application

This product is suitable for small go-karts, electric wheelchairs and senior mobility scooters.

250W/24V Specification

Please note that this kit does not include batteries, you need to buy batteries separately, lead-acid batteries and lithium batteries are available, recommended battery capacity is 24V 15Ah.

Material: Copper, Iron, Aluminum, Magnetic and Rubber

Color: Black

Assembly Required: Yes

Motor Type: Brush Gear Motor

Rated Voltage: 24V

Output Power: 250W

Unload Current: ≤2.2A

Rated Current: ≤13.4A

Unload Speed: 370rpm

Rated Speed: 330rpm

Rated Torque: 0.8N.m

Efficiency: ≥80%

Gear Ratio: 9:7:1

Insulation Class: F

Protect Grade: IP33

Speed: 10km/6.21mile/h

Wheel Diameter: 25.4cm/10in

Axle Hole Diameter: 12mm/0.47in

Package Size: 48*37*30cm/18.9*14.57*11.81in

Load Capacity: About 150-200kg/330.69-440.92lbs

Gross Weight: 16kg/35.27lbs

350W/36V Specification

Please note that this kit does not include batteries, you need to buy batteries separately, lead-acid batteries and lithium batteries are available, recommended battery capacity is 36V 15Ah.

Material: Copper, Iron, Aluminum, Magnetic and Rubber

Color: Black

Assembly Required: Yes

Motor Type: Brush Gear Motor

Rated Voltage: 36V

Output Power: 350W

Unload Current: ≤2A

Rated Current: ≤12.5A

Unload Speed: 370rpm

Rated Speed: 330rpm

Rated Torque: 1.1N.m

Efficiency: ≥80%

Gear Ratio: 9:7:1

Insulation Class: F

Protect Grade: IP33

Speed: 10km/6.21mile/h

Wheel Diameter: 25.4cm/10in

Axle Hole Diameter: 12mm/0.47in

Package Size: 48*37*30cm/18.9*14.57*11.81in

Load Capacity: About 150-200kg/330.69-440.92lbs

Gross Weight: 16kg/37.48lbs

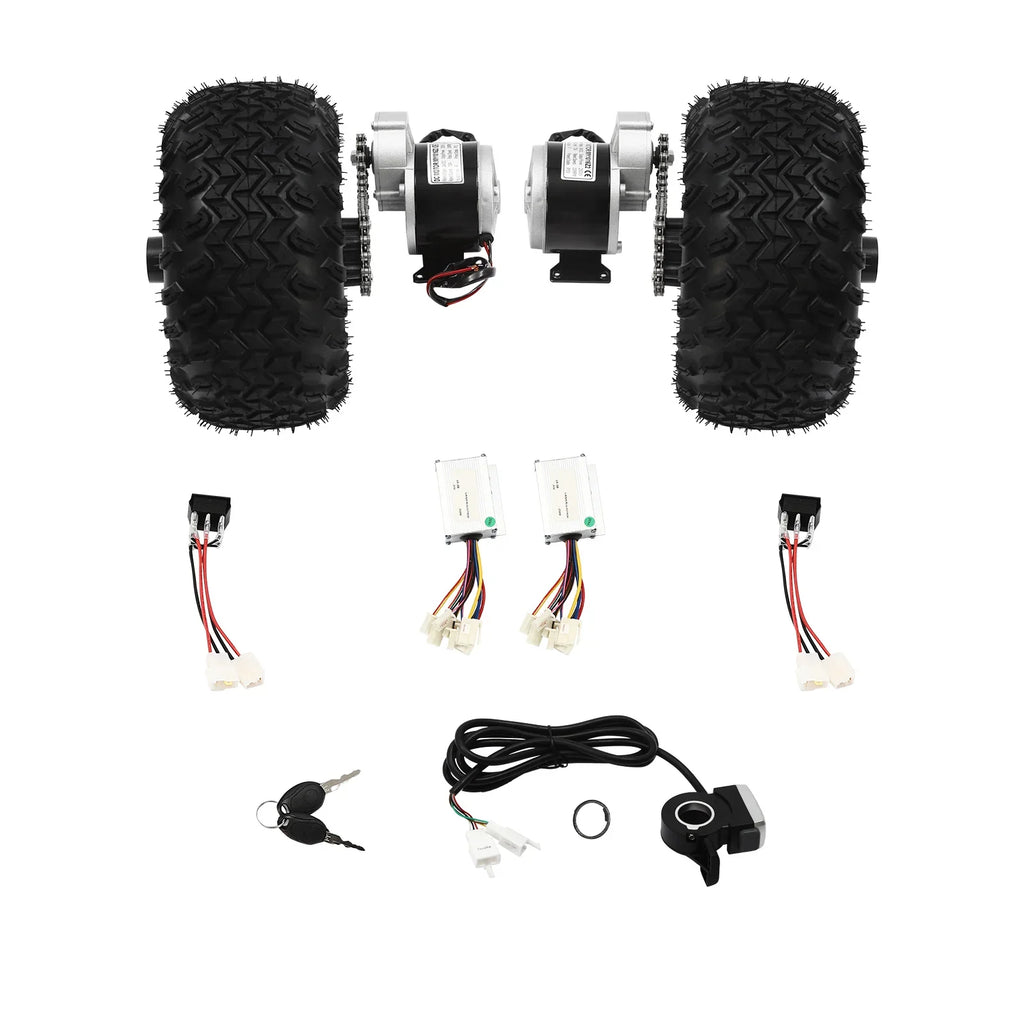

Package Included

2* Wheels

2* Motors

1* Thumb Throttle (with Battery Indicator Lights & Button Switch)

Other Accessories for Assembly

Description

If you are looking for a professional and safe kit for your scooter, then our set can be an ideal choice. Our products are made of high-quality materials and are built to last. Complete accessories are available to meet your needs. Its simple structure allows you to install and use it quickly. It is efficient and safe to use, providing a guarantee for your riding.

Key Features

Made to Last: This product is made of high-quality copper, iron, aluminum, magnetic and rubber, sturdy, stable, rust-proof and wear-resistant, ensuring long service life and strong load-bearing capacity, up to about 330.69-440.92lbs.

Complete Kit: This kit contains the complete set of accessories needed to modify your scooter without the need to purchase them separately. Matching kits will provide you with more stable and consistent performance.

Powerful Motor: With a 250W/360W brush gear motor, it can reach a maximum speed of 6.21mile/h. Compared to brushless geared motors, it has high starting torque, simple control and high adaptability.

High Safety: The F insulation class and IP33 protect grade make it safe and reliable, so you can use it with confidence.

Electrical Assistance: The motor kit provides electric assistance to reduce the physical burden on the rider, especially when riding uphill, against the wind or over long distances, making the ride easier and more enjoyable for riders of all ages and fitness levels.

Environmentally Friendly: Scooter, as a green mode of transportation, are conducive to environmental protection and are in line with the current concept of low-carbon life.

Ideal Gift: With its good performance, you can give it as a gift to your family or friends who love to ride, so that they can enjoy the fun of riding.

Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Large Wheels: 10inch diameter wheels with anti-skid design can easily handle most road conditions.

ReverseGear Switch: It solves the problem of traditional scooters that are difficult to reverse in narrow spaces or on steep ramps. It enables you to maneuver your scooters more safely and conveniently when you need to reverse, improving the flexibility and practicality of your vehicle.

Thumb Throttle:The thumb grip with power indicator allows you to easily adjust the motor boost level with a simple press of the thumb, while making it easy to see the status of use, improving the safety and convenience of control while riding.
