36V/48V 350W e-bike Brushless Controller for Electric Bicycle E-scooter Dual Mode Sensor/Sensorless
36V-48V 350W
$17.24
Skip to product information
36V/48V 350W e-bike Brushless Controller for Electric Bicycle E-scooter Dual Mode Sensor/Sensorless
$17.24
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Controller type: dual mode brushless controller
Hall sensor: can use
High-concerned chemical: None
Origin: Mainland China
Rated current: 18A
Rated power: 350W
Type: Controller
Use: electric bike,electric scooter,e-bike,tricycle
Voltage: 36V-48V all can fit
hall sensorless: can use
semi_Choice: yes
36V-48V 350W controller can work with hall sensor/hall sensorless
Rated Voltage: 36V/48V
Low Voltage : 31V/42V±0.5V
Rated Power: 350W
Limit Current: 17A

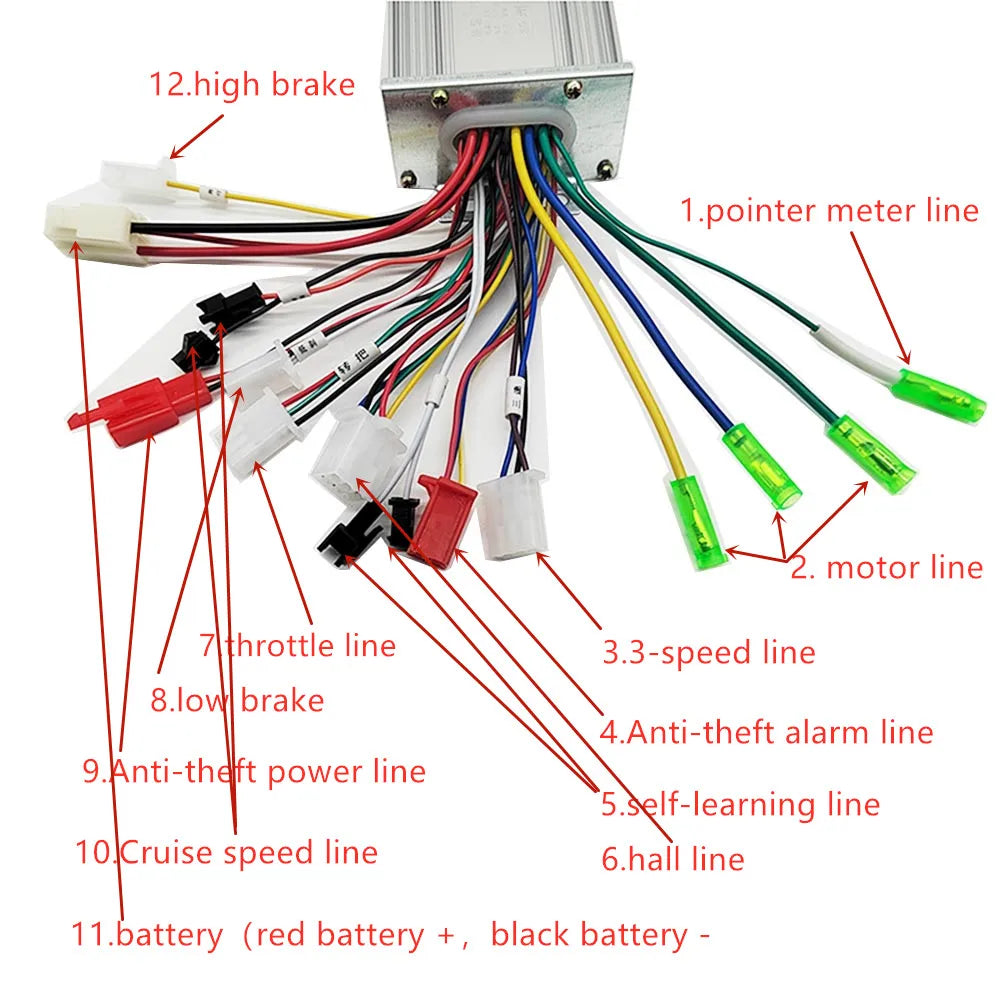

1.pointer meter line
2. motor line
3.3-speed line
4.Anti-theft alarm line
5.self-learning line
6.hall line
7.throttle line
8.low brake
9.Anti-theft power line
10.Cruise speed line
11.battery（2 red wires battery +，black battery -）
12.high brake
一.connect the motor line (color to color）
二. connect the battery line(2 red wires :battery + , black:battery-)
三. connect the controller throttle line（color to color）
四. connect the hall line(if motor without hall line, don’t need connect)
五.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.)
六.other functions can be connected as needed.
