36V/48V 350W Electric E-bike Scooter Brushless Motor Controller My20 20 Dropship

$36.12

Color 48-72V 1500W 24V-36V 250W 36V-48V 350W 24V 350W 24V 500W 36V48V 500W

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Model Number: /

Origin: Mainland China

Type: Scooter Engines

Voltage: 48V

is_customized: No

Note: operation detail of each one size ,you can contact us, thanks

Feature:

Anti-coaster features

Overcurrent protection

Automatic identification the Hall sensor

Automatic identification the Phase angle of 60 degrees and 120 degrees

Low level/E-ABS brake

High level/E-ABS brake

Applicable model: electric bicycle,electric scooter

Note: It only fit for Motor with sensors. This is a simple edition

Specifications:

Casing material: Aluminium

----------------------------------------------------------

Rated voltage: DC 36V/48V

Rated power: 350W

Current: 16-18A

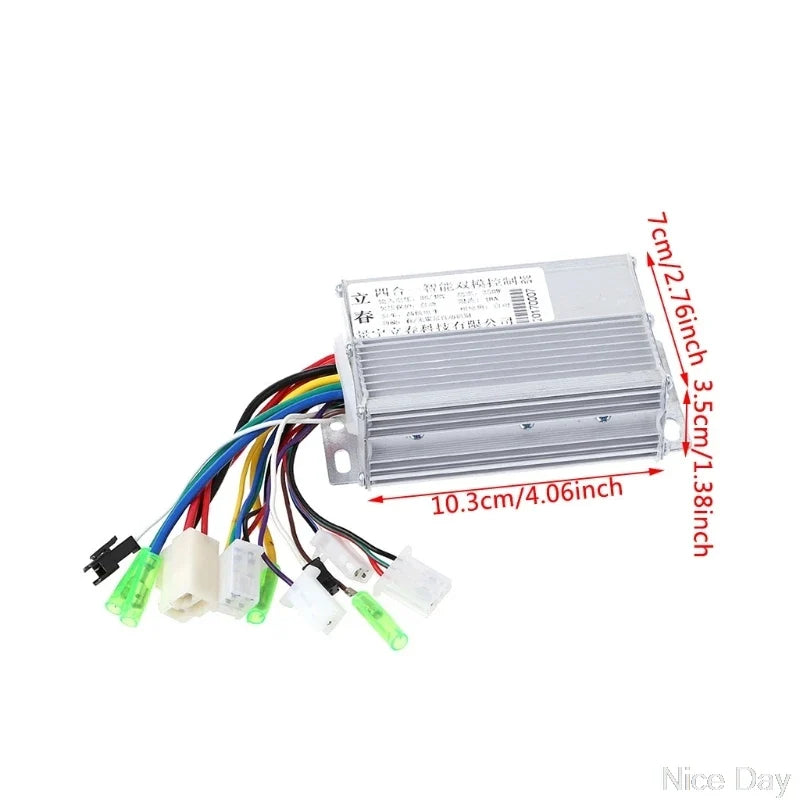

Size: 10.3x7x3.5cm/4.06x2.76x1.38inch

-----------------------------------------------------------

Rated Voltage: DC 24V/36V (Controller Auto Detect)

Rated Power: 250W

Matching Motor: DC Brushless Motor

Suitable for electric bike & scooter

Size: 9.5x5x3cm/3.74x1.97x1.18"

-----------------------------------------------------------

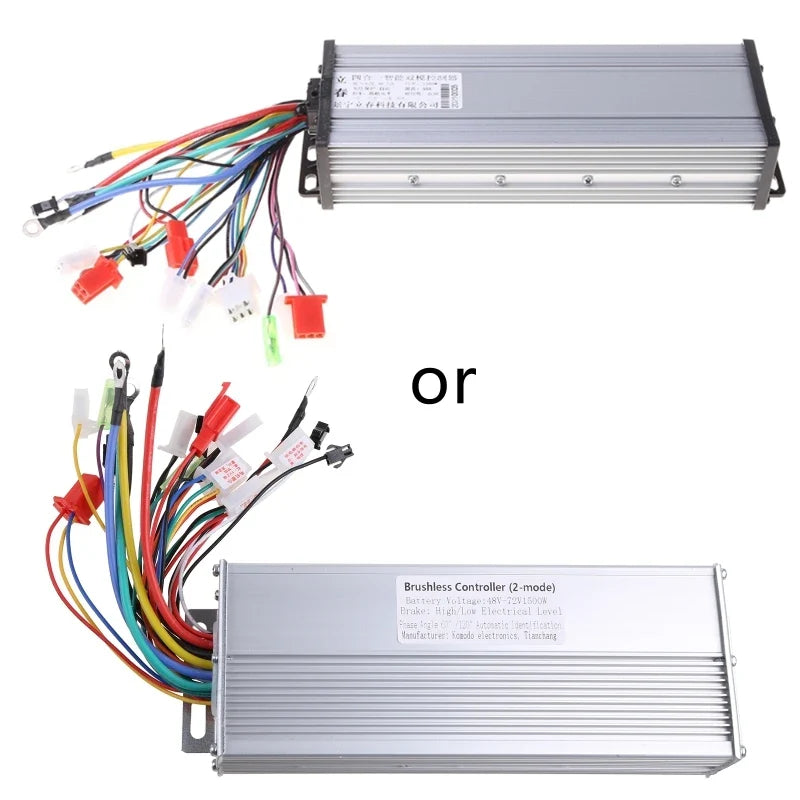

Input voltage:48V

Power:1500W

Current limit: 45A

Undervoltage protection:42V

Braking: high and low

Phase angle: automatic

Function: anti-theft three-speed reverse

First look at your electric car battery voltage levels,corresponding to the selected voltage controller,look at the size of the current controller previously used,such as the current is 16A-18A 350W controller,22A-24A controller is 450W,28A -30A controller is 500W,31A-33A is 600W controller,33A-35A is 800W controller,36A-38A is the 1000W controller,40A-43A is the 1200W controller,50A is about 2000W controller.Such selection controller,if the original car is 350W controllers we recommend the use of bigger,so you can take advantage of the highest motor speed and power.

Size:25.2x10.6cm/9.92x4.17inch

-----------------------------------------------------------------------------------------------------------------

Rated Voltage: 36V-48V

Rated Power: 500W

Size: 14.8x8.2x4cm/5.8x3.2x1.5in,

mount bracket: 6.5x1.5cm/2.5x0.5in,

mount hole diameter: 5.2x1.8cm/2.04x0.7in

--------------------------------------------------------------

Suitable Voltage:DC 24v

Match Motor:24V 500W

Protection:20V+-0.5V

Speed Regulator 1-4 V(Throttle )

Size:8.3x6.5x3.7cm/3.27x2.56x1.46inch

-----------------------------------------------------------

Match Motor:24V 350W

Rated Voltage: DC 24V

Rated Power: 350W

Current: 16-18A

Size: 10.3x7x3.5cm/4.06x2.76x1.38inch

----------------------------------------------------------

Quantity: 1 Pc

Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:

1 x Brushless motor controller
