36V 10S2P Lithium-Ion Battery Specification

This lithium-ion battery adopts a 10S2P configuration, with stable performance, comprehensive BMS protection, and wide applicability. It is suitable for various 36V DC equipment and is easy to use and store.

Specifications

Cell Count: 20 pieces (10S2P configuration: 10 cells in series, 2 cells in parallel)
Rated Voltage: 36V
Charging Voltage: 42V
Rated Power: 500 watts
BMS Rated Current: 15A (discharge), 5A (charging)
BMS Functions: Overcharge protection, over-discharge protection, overcurrent protection, and short-circuit protection

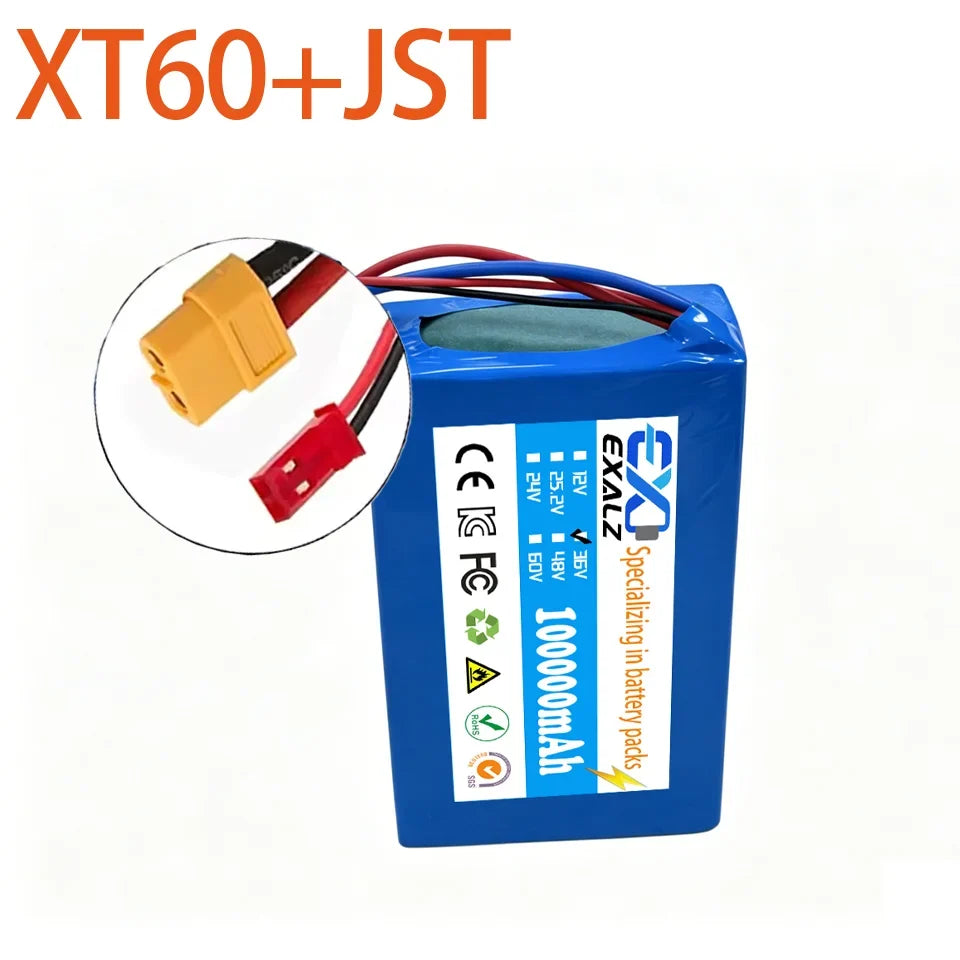

Connector: XT60 (discharge), SM 2P (charging)
Packaging: Heat-shrinkable PVC (any color available)
Output Voltage Range: 28V - 42V
Discharge Cutoff Voltage: 28V
Charging Cutoff Voltage: 42V
Charging Mode: CC-CV (Constant Current-Constant Voltage)
Maximum Charging Current: 5A
Charging Temperature: 0 - 45 °C
Discharge Temperature: -10 - 60 °C
Storage Temperature: -20 - 45 °C (for 3 months)
Cycle Life: 80% Depth of Discharge (DOD) after 500 cycles

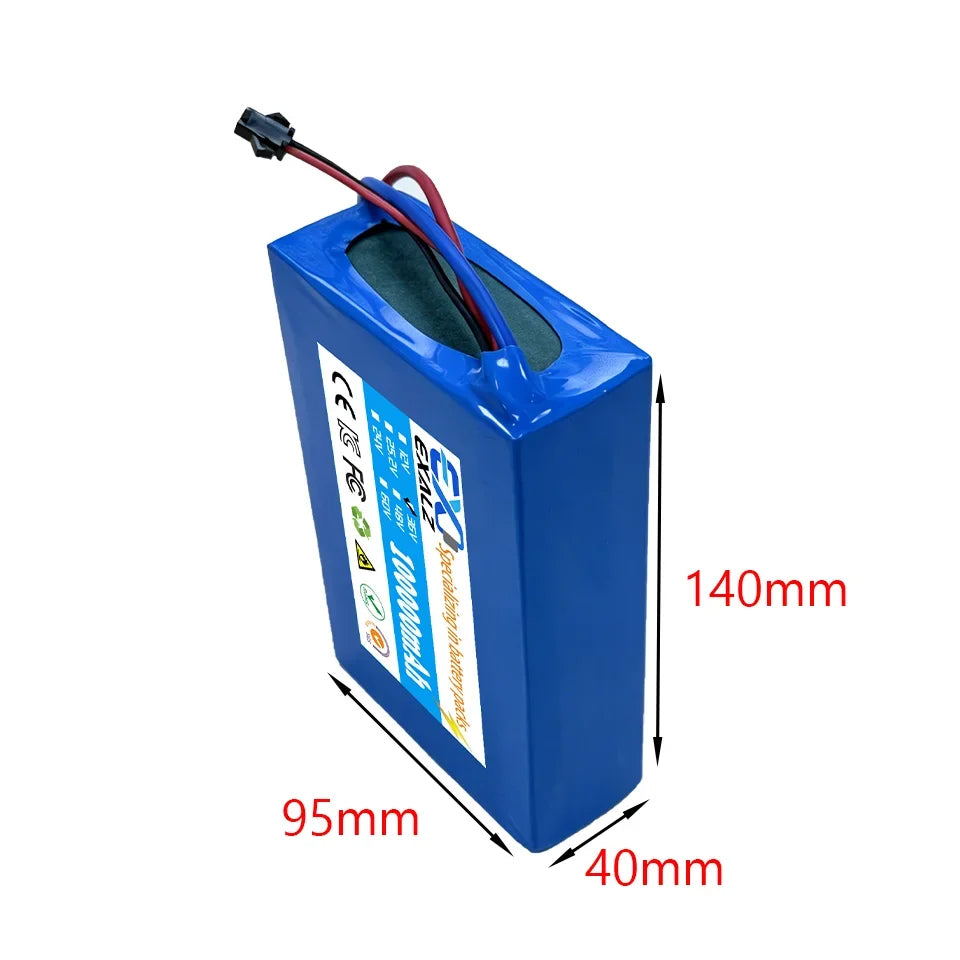

Size: 140mm × 95mm × 40mm (±3mm)
Weight: 950g (±50g)

Warranty

Warranty Term: 1 year
Warranty Scope: Battery and other components are not covered by the warranty.
Warranty Exclusions: Failures caused by water intake, disassembly, modification, non-use of matching chargers, short circuits, personal reasons, etc., are not covered by the warranty.
Handling Method: Send replacement parts to the buyer for replacement, or communicate with the seller to formulate corresponding solutions.

Application

Suitable for all 36V DC equipment with power less than 500W, such as electric bicycles, electric scooters, etc.
