Autel MaxiIM IM508S Key Programmer and Diagnostic Scanner - IMMO Key Programming, All Systems Diagnostics, Android 11, 7in Touchscreen

A professional key programming and diagnostic tool for locksmiths, independent workshops and serious mobile technicians. The Autel MaxiIM IM508S combines immobiliser and key work with full-system diagnostics on one 7 inch Android tablet, so you are not carrying separate boxes for key jobs and fault finding.

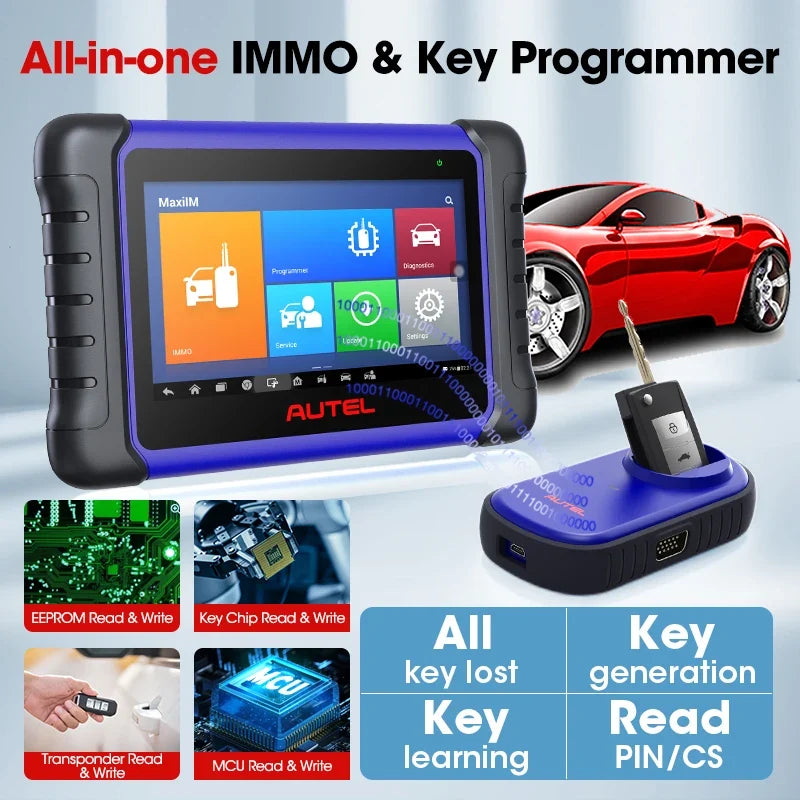

Key and immobiliser programming

• Read PIN and CS codes, including all keys lost situations
• Key generation, key learning and remote learning
• Automatic detection of vehicle make, model, year and system
• IMMO ECU reset, adaptation, refresh and coding
• Backup and restore of IMMO data
• Transponder read and write, EEPROM read and write, basic MCU read and write

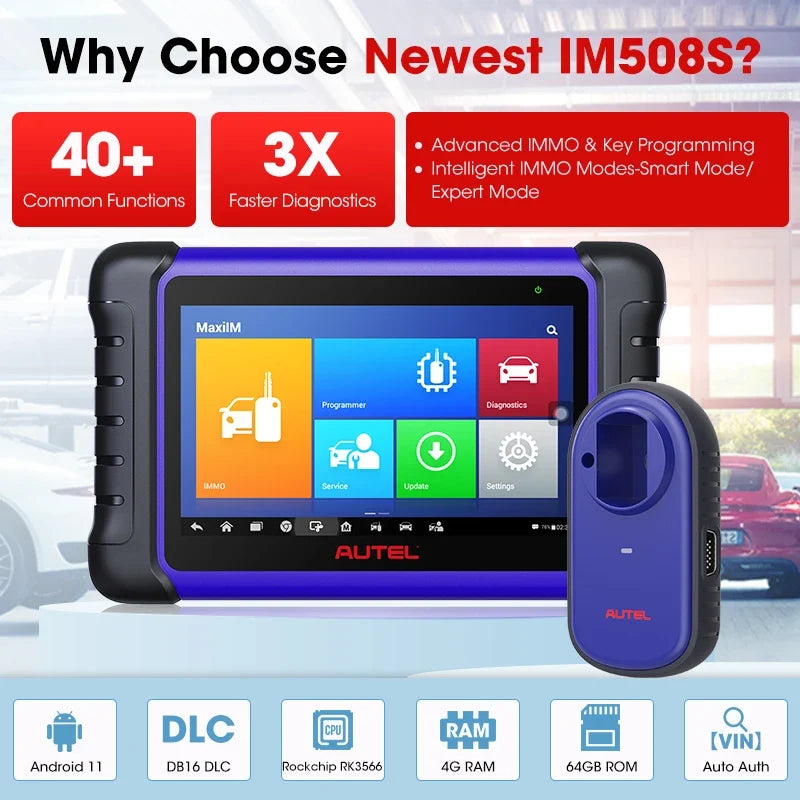

• Smart Mode for guided, automated key learning and Expert Mode for advanced work

Vehicle-specific IMMO coverage

• Mercedes-Benz 3rd generation IMMO - add key, all keys lost, key learning
• Mercedes-Benz FEM and BDC key learning with ECU adaptation
• BMW CAS2, CAS3 and CAS4 key learning
• VW, Audi, Skoda and Seat IMMO III, IV and V add key and all keys lost
• VW and Audi MQB add key, and Audi A4, A5, Q5 2015 onwards key learning

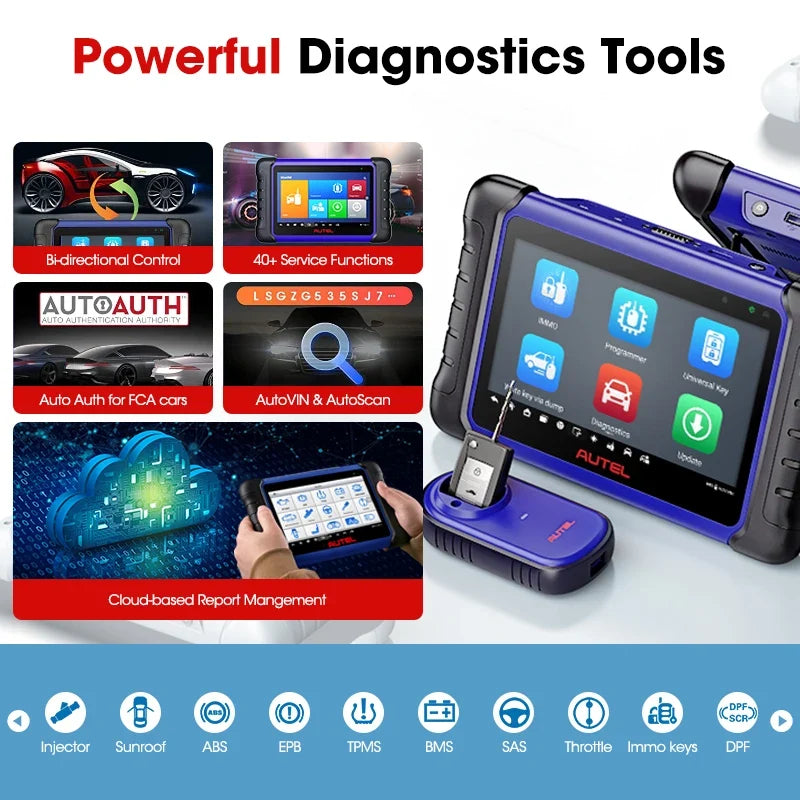

Full diagnostics, not just keys

The IM508S runs all-systems diagnostics on US, Asian and European vehicles from 1996 onwards, covering engine, transmission, ABS, SRS, TPMS, EPB, DPF, SAS and more. The service menu includes oil light reset, BMS registration, brake bleeding, throttle, injector, seat and suspension work.

Bi-directional control

Rather than guessing at a fault, the IM508S sends commands directly to the vehicle's ECU to actuate components - ABS pumps, windows, doors, solenoids, valves, wipers and headlamps - so you can confirm whether a part is actually dead before you start dismantling anything.

Choose your configuration

• IM508S - the base tool with its standard accessories
• IM508S Pro - the Pro configuration with expanded programming capability
• IM508S Pro Full Set - the Pro package with the fuller accessory kit
• IM508S Pro with APB112 and G-Box 3 - Pro plus both key programming adapters bundled in

Optional adapters and what they add

These can be bundled or bought separately depending on the work you take on:

• G-Box 3 - smart key emulator, collects ignition coil data, identifies coil faults, decodes and emulates key chip data
• APB112 - assists key programming for Mercedes DAS3 CAN EIS and EXS all keys lost, reads and writes BMW DME and DDE ISN, and speeds up all keys lost password access by 4 to 8 times
• IMKPA - includes 12 adapters for Mercedes ESL W209 and W906 read, write and erase, Mercedes NEC key learning, BMW EWS3 key learning and key unlocking for VW, Audi, BMW and Mercedes
• XP400 Pro - connects to extend programming capability further

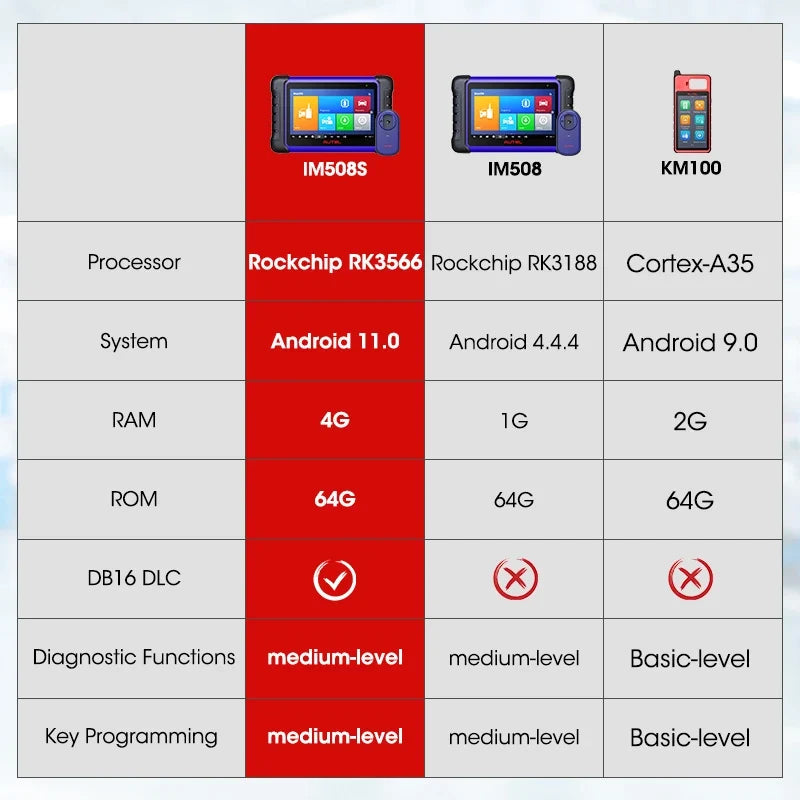

Hardware specifications

• Model: Autel MaxiIM IM508S
• Display: 7 inch LCD touchscreen, 1024 x 600
• Operating system: Android 11.0
• Processor: quad-core
• Internal memory: 64 GB
• Connectivity: Wi-Fi and Bluetooth
• Operating voltage: 12V, range 9 to 24V
• Power: 7.5W
• Housing: ABS plastic
• Software: 2026 version, cloud-based report management
• Languages: English, Spanish, Russian, Portuguese, Italian, Polish, Japanese, Korean, German and Swedish
• Battery included: yes
• Certification: CE

Software updates

In North America the IM508S comes with one year of free updates plus an included G-Box 3. In all other regions it comes with two years of free updates. After the device arrives, send us the serial number so the update period can be activated.

Important compatibility notes

Please read these before ordering, since key and IMMO coverage is not universal:

• Send us the 17-digit VIN along with the make, model and year so we can confirm the functions you need are supported on your vehicle.
• Since 25 August 2025, IMMO functions for Ford have been significantly limited in North America. Send the VIN for a compatibility check if Ford IMMO work matters to you.
• Autel scanners do not support all keys lost on Toyota, Lexus or Renault vehicles in North America.
• Porsche and Mercedes-Benz add key and all keys lost are supported on certain models. Confirm your specific model with us first.

Frequently asked questions

Will it work on my car?
Key and IMMO functions vary by make, model, year and region. Send us the 17-digit VIN with the make, model and year and we will check before you buy.

What is the difference between the IM508S and the Pro versions?
The Pro configurations add programming capability and accessories. The Pro Full Set and the Pro with APB112 and G-Box 3 bundle in adapters that otherwise cost extra.

Do I need the G-Box 3 or APB112?
Only for specific jobs. G-Box 3 handles key emulation and ignition coil data, while APB112 is what you want for Mercedes DAS3 all keys lost and BMW DME and DDE ISN work.

Can it do all keys lost?
Yes on many platforms, including Mercedes and VW group vehicles, but not on Toyota, Lexus or Renault in North America.

Does it do more than key programming?
Yes. It runs all-systems diagnostics on 1996 and newer US, Asian and European vehicles, with a full service menu and bi-directional actuator testing.

How long do I get software updates?
Two years free in most regions, or one year in North America with a G-Box 3 included. Send us the serial number after delivery to activate.

Where does it ship from?
Options include the United States, United Kingdom, Germany, France, Spain, Belgium, Czech Republic, Australia, Brazil, Mexico, Russian Federation and China Mainland.
