SPECIFICATIONS

Brand Name: Coolmay

Certification: CE

Does it include a Battery?: Yes

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

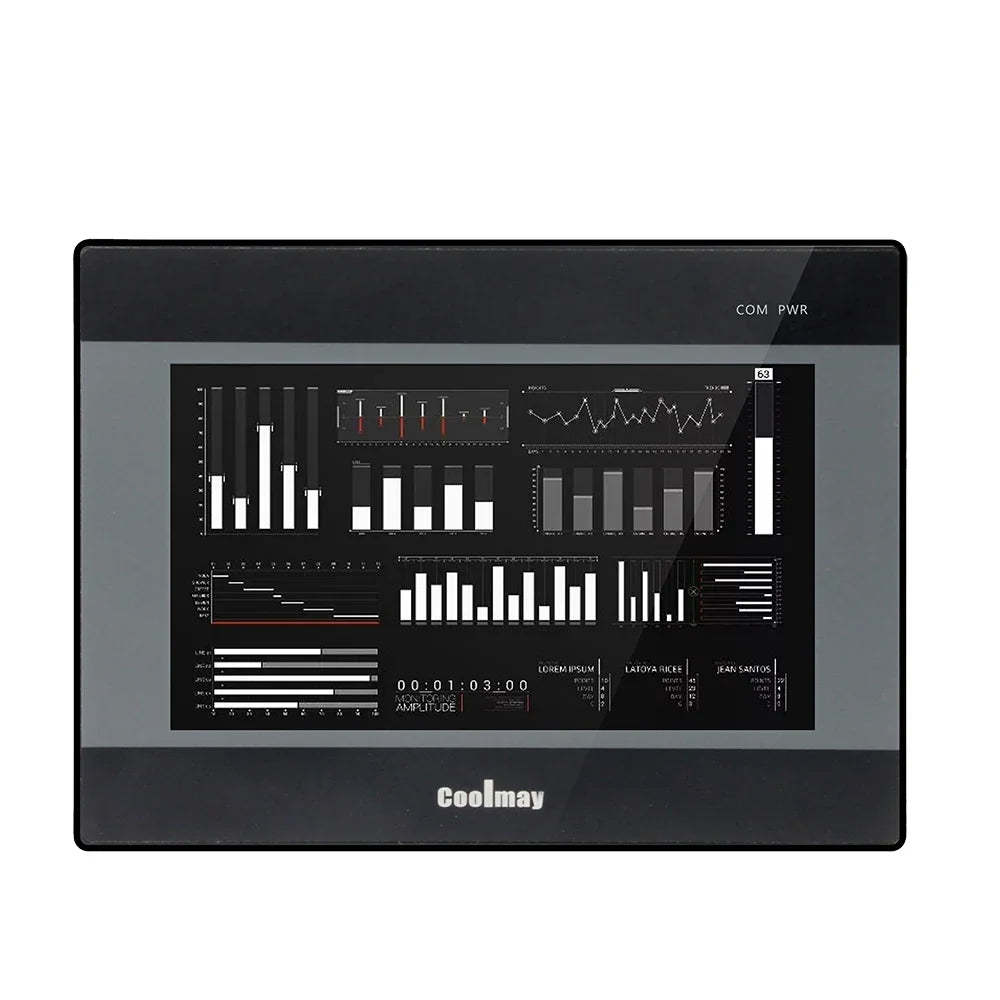

Model Number: EX3U-8070H-44MRT

Motor: Stepper Motor

Origin: Mainland China

The package will include

*1 set of device EX3U-8070H-44MRT and cables

* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.

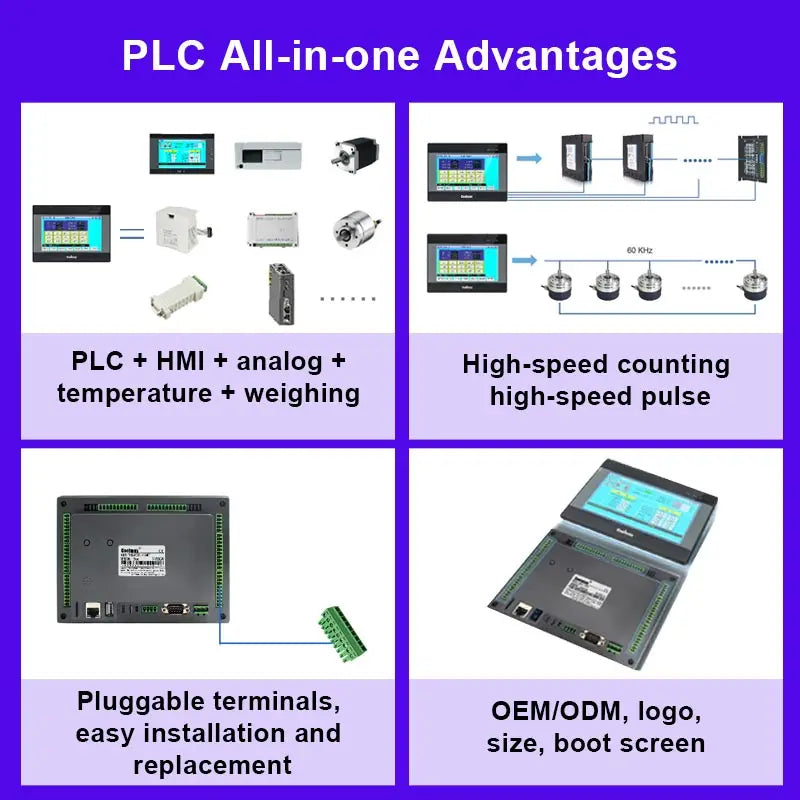

Model	EX3U-8043H	EX3U-8050H	EX3U-8070H	EX3U-8070H		EX3U-8100H
Dimension	13410234mm	1519636mm	20014636mm			27519436mm
Cutout size	120*94mm	143*86mm	192*138mm			262*180mm
Weight(kg)	0.3	0.3	0.65			0.9
Input	24VDC
Power Consumption	4-6W	5-7W	6-7W	6-7W		6-8W
HMI
Feature	60K colors resistive touch screen, supports portrait display
Type	4.3"TFT	5"TFT	7.0"TFT			10.1"TFT
Display size	97*56mm	108*65mm	154*87mm			222*125mm
Resolution(pixels)	480*272	800*480	800*480			1024*600
RAM	128MB (EX3U-8070H/8100H:256MB)
ROM	NAND Flash 128MB		NAND Flash 256MB
CPU	1GHz*2Core

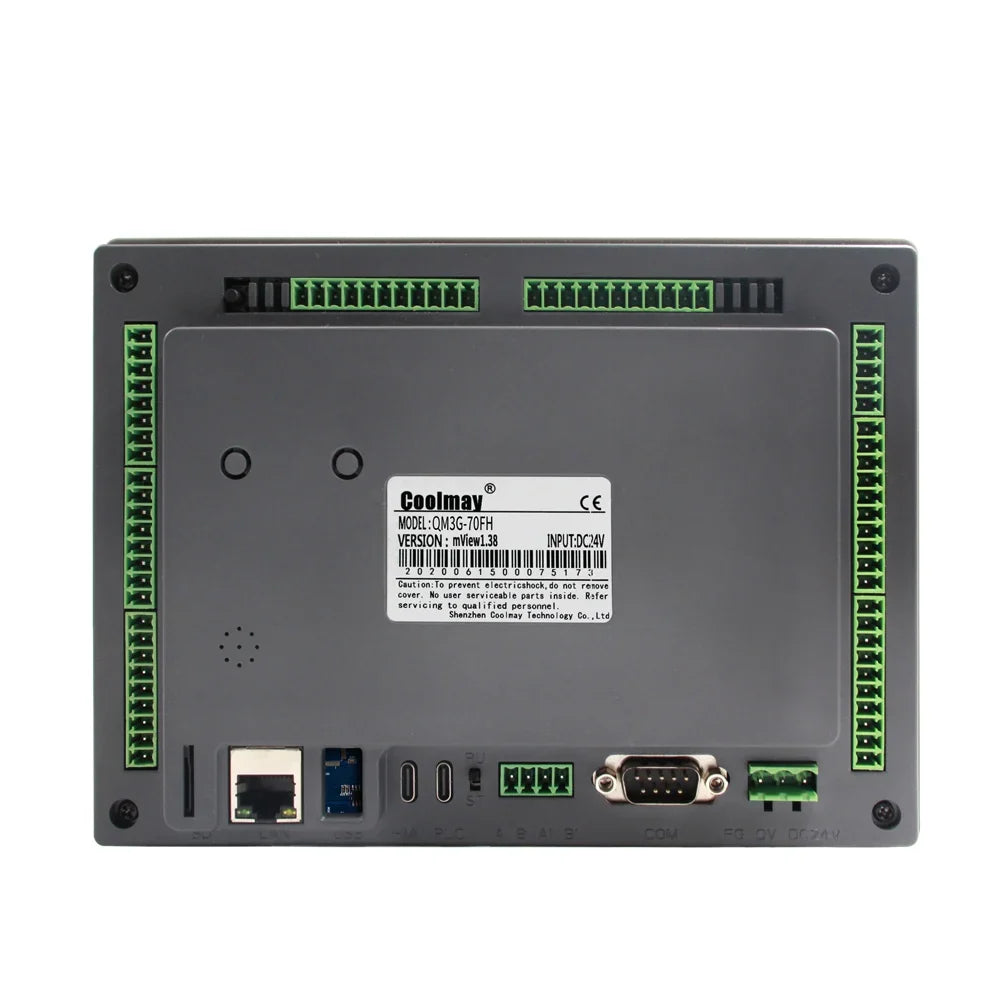

COM ports	Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port			Type-B HMI download port (can download PLC program through the USB penetrating function), RS232
Software	HMI Programming Software : Coolmay Vcool
PLC
I/O level	-Input: Passive NPN, public terminal isolated
	Transistor output: Low level NPN, COM connect to negative
	-Relay output: Normally open dry contact
DO type and load			-MT: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM
	-MT: 2A/point, 4A/4 point COM, 5A/12 point COM		-MR: 2A/point, 4A/4 points COM, 5A/12 points COM.
	-MR: 2A/point, 5A/12 point COM
High-speed counting	4.3/5 inch single-phase 6-channel and AB-phase 2-channel at 100KHz, 7/10 inch single-phase 8-channel and AB-phase 3-channel at 100KHz
High-speed pulse	4.3/5-inch MT output: Regular 4-channel Y0-Y3 at 200KHz; 7/10-inch MT output: regular 8-channel, Y0-Y5 at 200KHz, Y6-Y7 at 100KHz
(Only for MT models)
COM port	1x TYPE-C, 1x RS232, 1x RS485				1x mini USB, 1x RS232, 1x RS485
PLC Software	Coolmay VTool Pro
Detailed info. refer to: “Coolmay EX3U-80 All-in-One User Manual”, “Coolmay EX3U-80 All-in-One Programming Manual”
