Rudderstar 18-LED RGBW Wall Washer Stage Light - 120W, 129+ Effects, DMX512, Voice Control, 1/2/4 Pack, EU/US/UK Plug

A professional RGBW LED wall washer and fill light from Rudderstar - 18 pcs 8W RGBW LEDs with 25-degree high-brightness lenses for saturated color wash output, plus 234 pcs 0.2W white LEDs through transparent acrylic bars for crystal-clear fill lighting. 120W total power. 129+ dynamic lighting effects with independent control of the RGBW and white fill sections. Four operation modes: DMX512 (professional control), master-slave (daisy-chain sync), voice/sound activation (built-in adjustable mic), and self-propelled (auto). CE certified, AC110-240V universal voltage. Available in 1, 2, or 4-pack with EU, US, or UK plug. Select your quantity and plug type from the variant options.

Light Output

• 18 x 8W RGBW LEDs - the primary color-wash section; 25-degree beam angle lenses concentrate the output for directional color coverage; RGBW (red, green, blue, white) allows full-spectrum color mixing including pure whites and pastels alongside saturated primaries; rated at 2000-82000 luminous flux range across dimming levels; average LED life 50,000 hours
• 234 x 0.2W white fill LEDs - the white fill section uses 234 small-wattage white LEDs through transparent acrylic diffuser bars to create an even, soft fill light alongside the RGBW color wash; the fill section is independently controllable from the RGBW section, allowing separate programming of color and fill intensity
• 129+ dynamic effects - 29 main light chase effects for the RGBW section plus 59 fill light patterns for the white section; effects run independently with individual speed adjustment and DMX pixel mapping at 3-LED grouping resolution; total effect count exceeds 129 distinct combinations

Control Modes

• DMX512 / RDM - standard DMX512 protocol with 5/14/33/37 channel modes selectable via the 4-digit digital display; 3-pin XLR input and output (three-core XLR) for daisy-chain DMX runs; RDM (Remote Device Management) protocol supported for bidirectional communication and remote addressing from a compatible DMX controller
• Master-slave - one fixture operates as master and synchronizes connected fixtures automatically via XLR data link; no DMX controller required for synchronized multi-unit displays

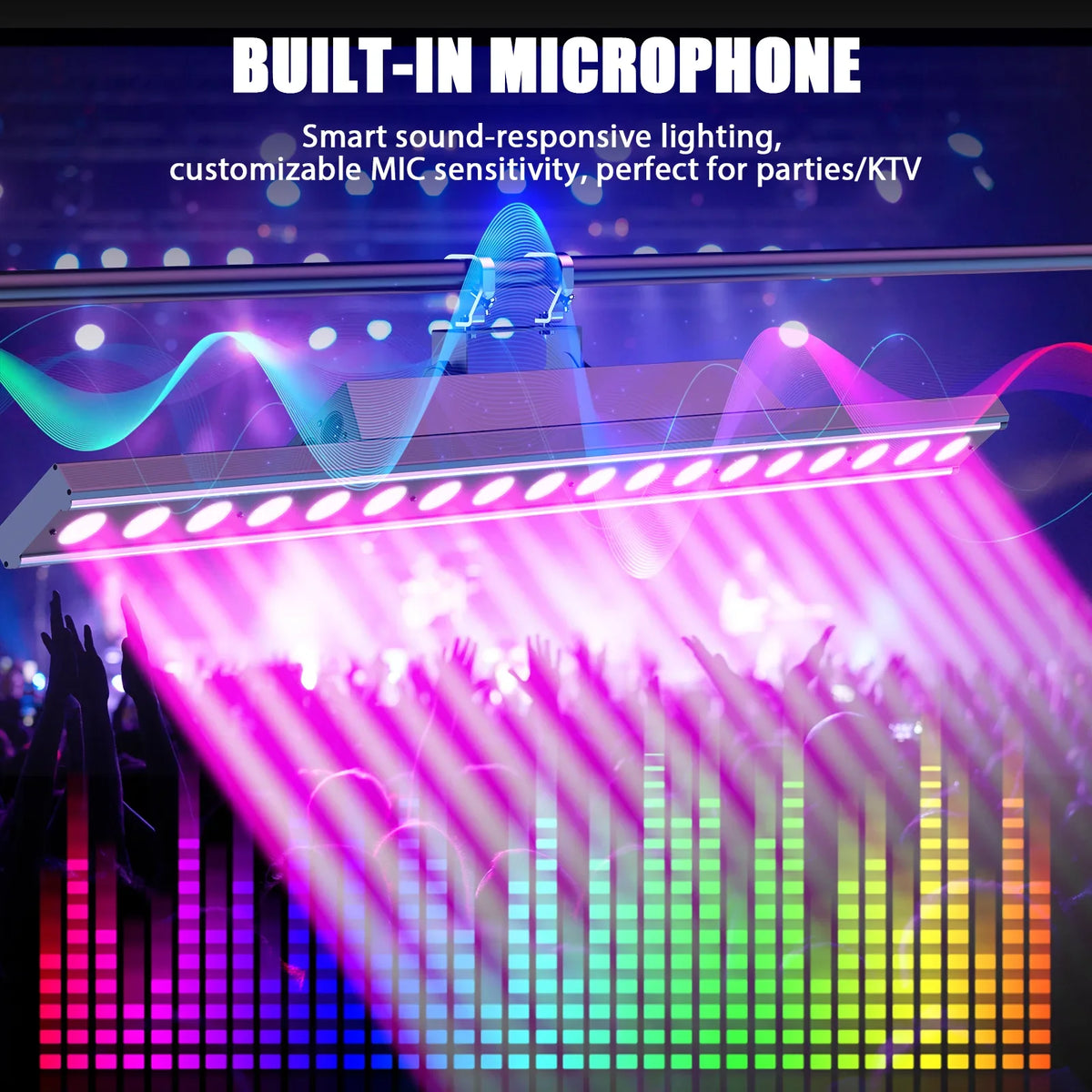

• Voice / sound activation - built-in microphone with adjustable sensitivity automatically triggers and syncs lighting effects to ambient music or audio; sensitivity adjustable to match the venue acoustic level
• Self-propelled (auto) - fixture runs built-in automatic programs independently with no external control input required; suitable for unattended installations
• 0-100% linear dimming - full linear dimming range with no color shift at low dim levels; 1-20Hz strobe/flash rate

Specifications

• Brand: Rudderstar
• Light source: 18 x 8W RGBW LEDs + 234 x 0.2W white LEDs
• Total power: 120W
• Beam angle: 25 degrees
• CRI: Ra 85 or above
• Effects: 129+ (29 RGBW chase + 59 fill patterns)
• DMX channels: 5 / 14 / 33 / 37CH selectable
• Control: DMX512, RDM, master-slave, voice/sound, auto
• Data connection: 3-pin XLR input/output
• Display: 4-digit digital
• Dimming: 0-100% linear
• Flash rate: 1-20Hz
• Input voltage: AC110-240V 50/60Hz (universal)
• Protection: IP20
• Housing: Iron
• Product size: 94.2 x 7.4 x 12.5cm / 37.1 x 2.9 x 4.9"
• Net weight: 2.2kg / 4.85lb
• LED lifespan: 50,000 hours average
• Working temperature: -20 to 40 degrees C
• Certification: CE
• Variants: 1-pack, 2-pack, or 4-pack - EU, US, or UK plug
• Ships from: Germany, Mexico, United States, United Kingdom

Frequently Asked Questions

Can I daisy-chain multiple units for synchronized DMX control?
Yes - each fixture has both XLR input and XLR output (3-pin), allowing fixtures to be daisy-chained in a standard DMX run. The last fixture in the chain should have a DMX terminator (120-ohm resistor) on the output to prevent signal reflection issues on longer runs, though this is often omitted in short runs without visible problems. Set each fixture to a different DMX start address via the 4-digit display, then assign channel blocks in your DMX controller software according to the channel mode selected (5, 14, 33, or 37CH per fixture). In 37CH mode, each fixture has the maximum individual LED pixel control. For simple synchronized color changes without a DMX controller, use master-slave mode - connect all fixtures in a chain, set one as master, and the rest will follow automatically.

What is the difference between the RGBW and white fill LED sections, and can I control them independently?
The fixture has two physically distinct LED sections: the 18 x 8W RGBW LEDs produce directional color wash output at 25 degrees, while the 234 x 0.2W white fill LEDs create a soft diffuse fill light through acrylic bars. In DMX mode (particularly in the higher channel count modes - 14CH, 33CH, or 37CH), these two sections are independently addressable and can be set to different colors, intensities, and effects simultaneously. In auto and sound-activation modes, both sections run programmed effects that are coordinated but visually distinct - the chase effects on the RGBW section and the fill patterns on the white section create a layered, professional lighting look. In basic 5CH DMX mode, the sections are controlled as a combined unit.

Is IP20 suitable for outdoor use?
No - IP20 provides no protection against water ingress and is rated for indoor dry use only. Do not use this fixture outdoors, in rain, in high-humidity environments, or in venues where water from sprinkler systems or wet weather could reach the fixture. For outdoor or wet-environment stage lighting, fixtures with IP65 or higher ratings are required. This fixture is appropriate for indoor venues including clubs, bars, theaters, concert halls, wedding reception halls, and home entertainment rooms where the fixture is protected from weather and moisture.
