SPECIFICATIONS

Accessory Type: SENSOR

Battery Included: Yes

Brand Name: seeed studio

Compatible With: Meshcore

GPS: L76K(GPS,BeiDou,GLONASS,QZSS)

High-concerned chemical: none

OLED Display: Size: 1.3 inch

On-chip Memory: 1 MB flash and 256 kB RAM

Origin: Mainland China

Power: Type-C: 5v---1A

Typical Application Fields: Internet of Things (IoT)

Wireless: LoRa: Based on Wio-SX1262 WirelesModule, supports 862-930MHz/Bluetooth 5.0

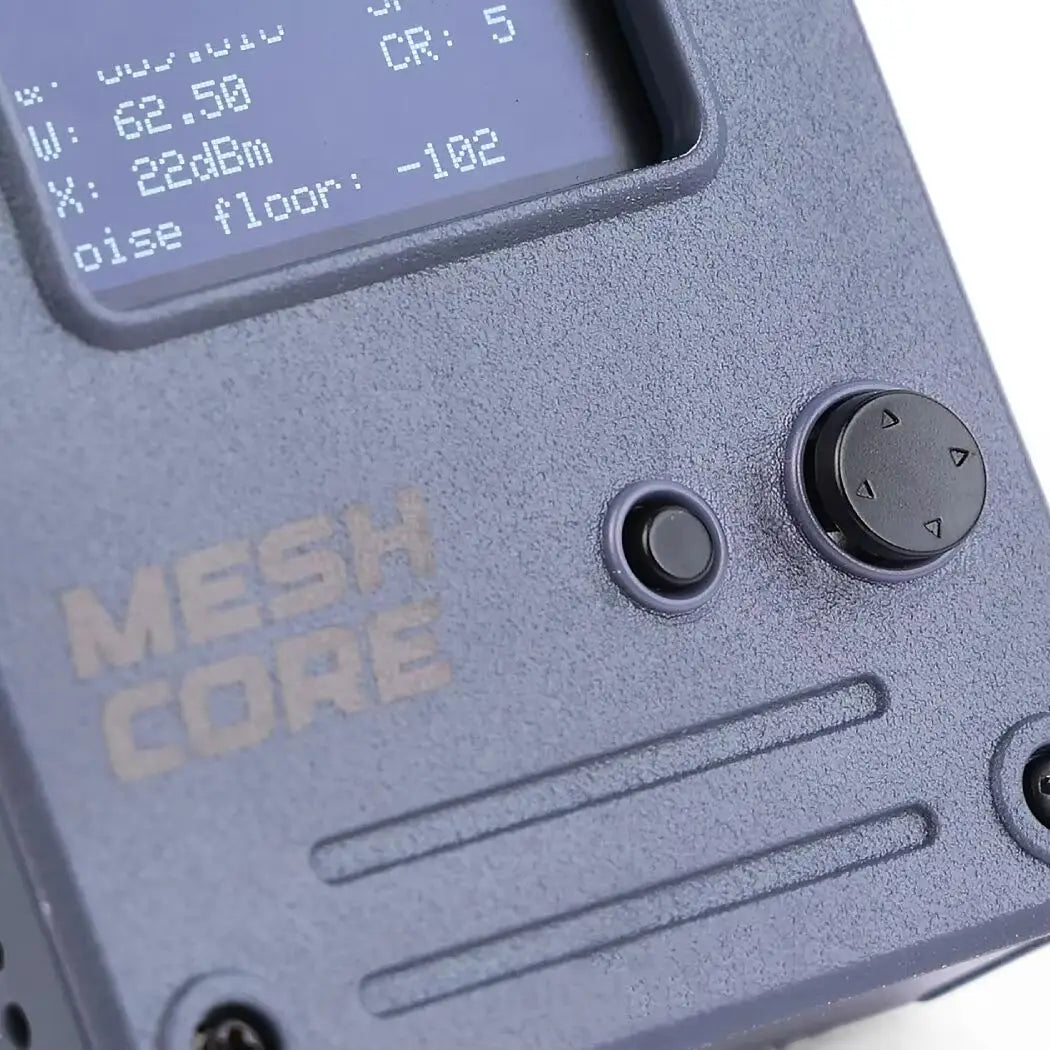

Wio Tracker L1 Pro is a MeshCore-based device featuring low power consumption, a built-in rechargeable battery, and a durable enclosure. Designed for field use, it is ready to use out of the box with no assembly required. Wio Tracker L1 Pro for MeshCore comes with pre-flashed MeshCore Bluetooth Companion firmware.

Feature

MeshCore is a multi platform system for enabling secure text based communications utilising LoRa radio hardware. It can be used for Off-Grid Communication, Emergency Response & Disaster Recovery, Outdoor Activities, Tactical Security including law enforcement, private security and also IoT sensor networks.

Wio Tracker L1 Pro for MeshCore comes with pre-flashed MeshCore Bluetooth Companion firmware. If you want to buy L1 Pro with pre-flashed Meshtastic firmware, please click here to buy.

Ready-to-Use Durable Enclosure

The L1 Pro comes with a rugged, lightweight enclosure designed for immediate use—no additional assembly required. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

Pre-flashed with MeshCore firmware

Ready to use out of the box with pre-installed MeshCore Bluetooth Companion firmware for seamless setup.

Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

Specification

Processor	Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262 Wireless Module, supports 862-930MHz
Wireless	Bluetooth 5.0
GPS	L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display	Size: 1.3 inch
	Resolution: 128*64 pixels
	Active Area(mm): L34.5W23.0H1.47
Power	Type-C: 5v---1A
	Solar energy interface(2.0mm 2p):5V---1A
	Baterry interface(1.0mm 2p JST): 3.7v---1A
Certification	FCC, CE, RoHS，EUDOC,TELEC,UKDOC

Hardware Overview

Application

Documents

Wio Tracker Ll Pro 3D-Shell Reference Document

Hardware Schematic Diagram

Seeed Wio Tracker L1 Power Consumption Calculation

HSCODE	8526919090
USHSCODE	8526910040
UPC
EUHSCODE	8517180000
COO	CHINA

Part List

Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery	x1
LoRa Antenna	x1
